How to Set Up Tomcat with Nginx as a Reverse Proxy on Ubuntu Atlantic.Net

Apache Tomcat is an open-source implementation of the Java Servlet and JSP technologies that can be used to deploy Java-based applications. It was created under the Apache-Jakarta subproject, but due to its popularity, it is now hosted as a separate Apache project. Tomcat also provides additional functionality that makes it easier to develop a complete web application solution. Tomcat is simple, easy-to-use, and one of the most widely used web servers in the world.

If you are looking to run Java-based applications that operate seamlessly and fast, then Apache Tomcat is the best choice for you.

In this tutorial, we will learn how to install and configure Apache Tomcat with Nginx as a reverse proxy on Ubuntu 18.04 VPS.

Prerequisites

A fresh Ubuntu 18.04 VPS on the Atlantic.Net Cloud Platform.
A valid domain name pointed at your VPS IP address. In this tutorial, we will use example.com.

Note: You can refer to the Atlantic DNS Guide to manage the DNS records.

Step 1 – Create Atlantic.Net Cloud Server

First, log in to your Atlantic.Net Cloud Server. Create a new server, choosing Ubuntu 18.04 as the operating system with at least 2GB RAM. Connect to your Cloud Server via SSH and log in using the credentials highlighted at the top of the page.

Once you are logged in to your Ubuntu 18.04 server, run the following command to update your base system with the latest available packages.

apt-get update -y

Step 2 – Install Java

Apache Tomcat is a Java-based application, so Java must be installed on your system. You can install the latest version of Java with the following command:

apt-get install default-jdk -y

After installing Java, verify the Java version with the following command:

java --version

You should get the following output:

Step 4 – Create Tomcat User

Next, you will need to create a Tomcat user and group to run the Tomcat service.

First, create a group with the name tomcat using the following command:

groupadd tomcat

Next, create a new tomcat user and make this user member of the tomcat group with a /home/tomcat home directory.

useradd -s /bin/false -g tomcat -d /home/tomcat tomcat

At this point, the Tomcat user is created.

Step 5 – Download Tomcat

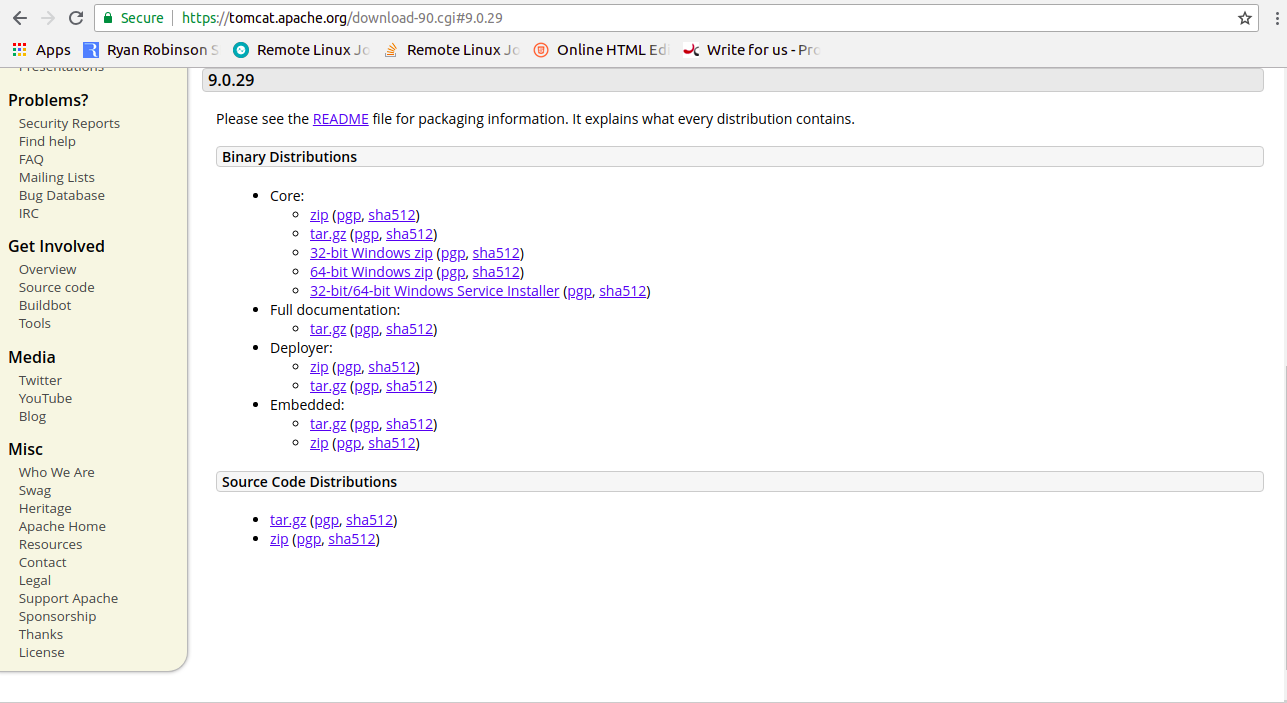

First, visit the Apache Tomcat download page. You should see the following screen:

Next, download the latest version of Apache Tomcat with the following command:

wget http://www.mirrorservice.org/sites/ftp.apache.org/tomcat/tomcat-9/v9.0.31/bin/apache-tomcat-9.0.31-fulldocs.tar.gz

After downloading Apache Tomcat, extract the downloaded file with the following command:

tar -xvzf apache-tomcat-9.0.31-fulldocs.tar.gz

Next, move the extracted directory to /home/tomcat as shown below:

mv tomcat-9.0-doc /home/tomcat

Next, change the ownership of the /home/tomcat directory to tomcat and give proper permissions with the following command:

chown -R tomcat:tomcat /home/tomcat
chmod -R 755 /home/tomcat/

Step 6 – Create a System Unit File for Tomcat

Next, you will need to create a systemd service file to run Tomcat as a service. You can create it with the following command:

nano /etc/systemd/system/tomcat.service

Add the following lines:

[Unit]
Description=Tomcat servlet container
After=network.target

[Service]
Type=forking

User=tomcat
Group=tomcat

Environment="JAVA_HOME=/usr/lib/jvm/default-java"
Environment="JAVA_OPTS=-Djava.security.egd=file:///dev/urandom"

Environment="CATALINA_BASE=/home/tomcat"
Environment="CATALINA_HOME=/home/tomcat"
Environment="CATALINA_PID=/home/tomcat/temp/tomcat.pid"
Environment="CATALINA_OPTS=-Xms512M -Xmx1024M -server -XX:+UseParallelGC"

ExecStart=/home/tomcat/bin/startup.sh
ExecStop=/home/tomcat/bin/shutdown.sh

[Install]
WantedBy=multi-user.target

Save and close the file. Then, reload the systemd daemon with the following command:

systemctl daemon-reload

Next, start the Tomcat service and enable it to start after system reboot:

systemctl start tomcat
systemctl enable tomcat

You can also check the status of the Tomcat service with the following command:

systemctl status tomcat

You should see the following output:

● tomcat.service - Tomcat servlet container
   Loaded: loaded (/etc/systemd/system/tomcat.service; disabled; vendor preset: enabled)
   Active: active (running) since Thu 2019-11-28 05:15:32 UTC; 7s ago
  Process: 6044 ExecStart=/home/tomcat/bin/startup.sh (code=exited, status=0/SUCCESS)
 Main PID: 6053 (java)
    Tasks: 43 (limit: 1150)
   CGroup: /system.slice/tomcat.service
           └─6053 /usr/lib/jvm/default-java/bin/java -Djava.util.logging.config.file=/home/tomcat/conf/logging.properties -Djava.util.logging.m

Nov 28 05:15:32 ubuntu1804 systemd[1]: Starting Tomcat servlet container...
Nov 28 05:15:32 ubuntu1804 startup.sh[6044]: Tomcat started.
Nov 28 05:15:32 ubuntu1804 systemd[1]: Started Tomcat servlet container.

Step 7 – Access Tomcat Web Interface

Tomcat is now installed and running on port 8080. You can verify the Tomcat port with the following command:

ss -ant

You should see the following output:

Active Internet connections (servers and established)
Proto Recv-Q Send-Q Local Address           Foreign Address         State
tcp        0      0 127.0.0.53:53           0.0.0.0:*               LISTEN
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN
tcp6       0      0 :::8009                 :::*                    LISTEN
tcp6       0      0 :::8080                 :::*                    LISTEN
tcp6       0      0 :::22                   :::*                    LISTEN
tcp6       0      0 127.0.0.1:8005          :::*                    LISTEN

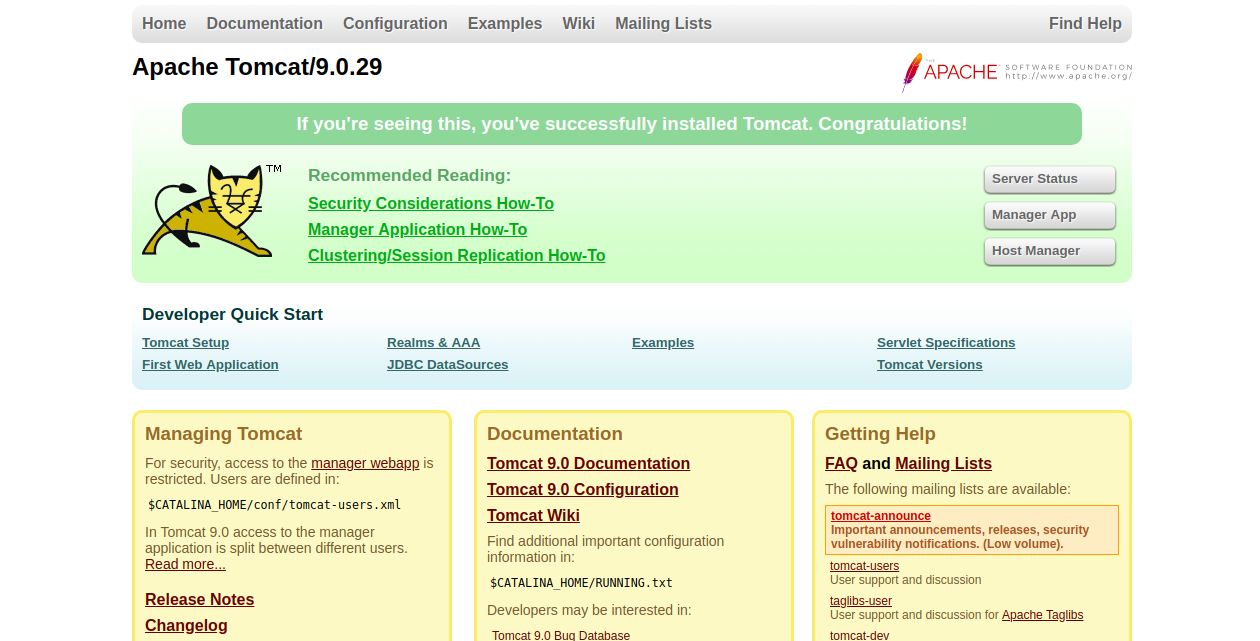

Now, open your web browser and visit the URL http://your-server-ip:8080. You should see the Tomcat default web page:

Step 8 – Configure Tomcat Web Management Interface

Next, you will need to add a login to access the manager web application.

You can add a user to access manager-gui and admin-gui by editing the file tomcat-users.xml:

nano /home/tomcat/conf/tomcat-users.xml

Add the following lines above the line </tomcat-users>:

<role rolename="manager-gui"/>
<user username="tomcat1" password="s3cret" roles="manager-gui"/>
<role rolename="admin-gui"/>
<user username="tomcat" password="s3cret" roles="admin-gui"/>

Save and close the file when you are finished.

By default, Tomcat is configured to restrict access to the Manager and Host Manager apps only from the localhost, so you will need to remove this restriction.

To remove the restriction for Manager app, edit the context.xml file as shown below:

nano /home/tomcat/webapps/manager/META-INF/context.xml

Comment out the Valve section as shown below:

<Context antiResourceLocking="false" privileged="true" >
<!--
  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1|223.184.194.44" />
-->
  <Manager sessionAttributeValueClassNameFilter="java\.lang\.(?:Boolean|Integer|Long|Number|String)|org\.apache\.catalina\.filters\.CsrfPreven$
</Context>

Save and close the file.

To remove the restriction for Host Manager app, edit the context.xml file as shown below:

nano /home/tomcat/webapps/host-manager/META-INF/context.xml

Comment out the Valve section as shown below:

<Context antiResourceLocking="false" privileged="true" >
<!--

  <Valve className="org.apache.catalina.valves.RemoteAddrValve"
         allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1|223.184.194.44|172.20.10.3" />
-->

  <Manager sessionAttributeValueClassNameFilter="java\.lang\.(?:Boolean|Integer|Long|Number|String)|org\.apache\.catalina\.filters\.CsrfPreven$
</Context>

Save and close the file when you are finished. Then, restart the Tomcat service to apply the changes:

systemctl restart tomcat

Now, open your web browser and type the URL http://your-server-ip:8080. You should see the following page:

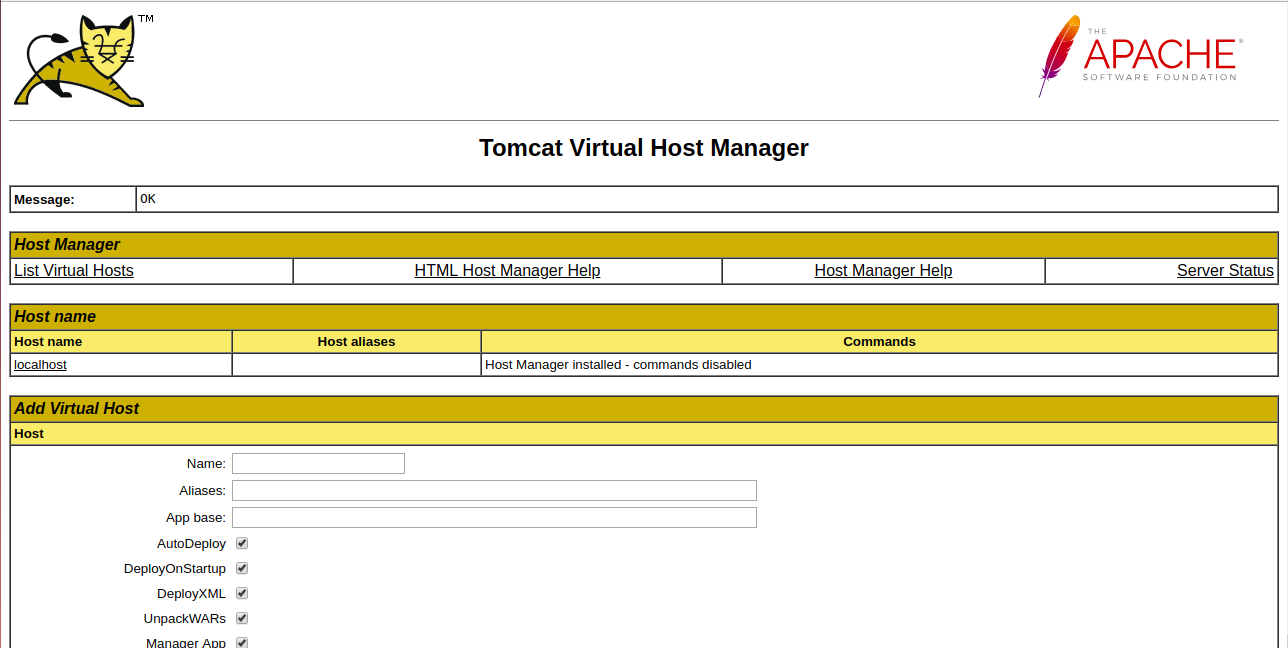

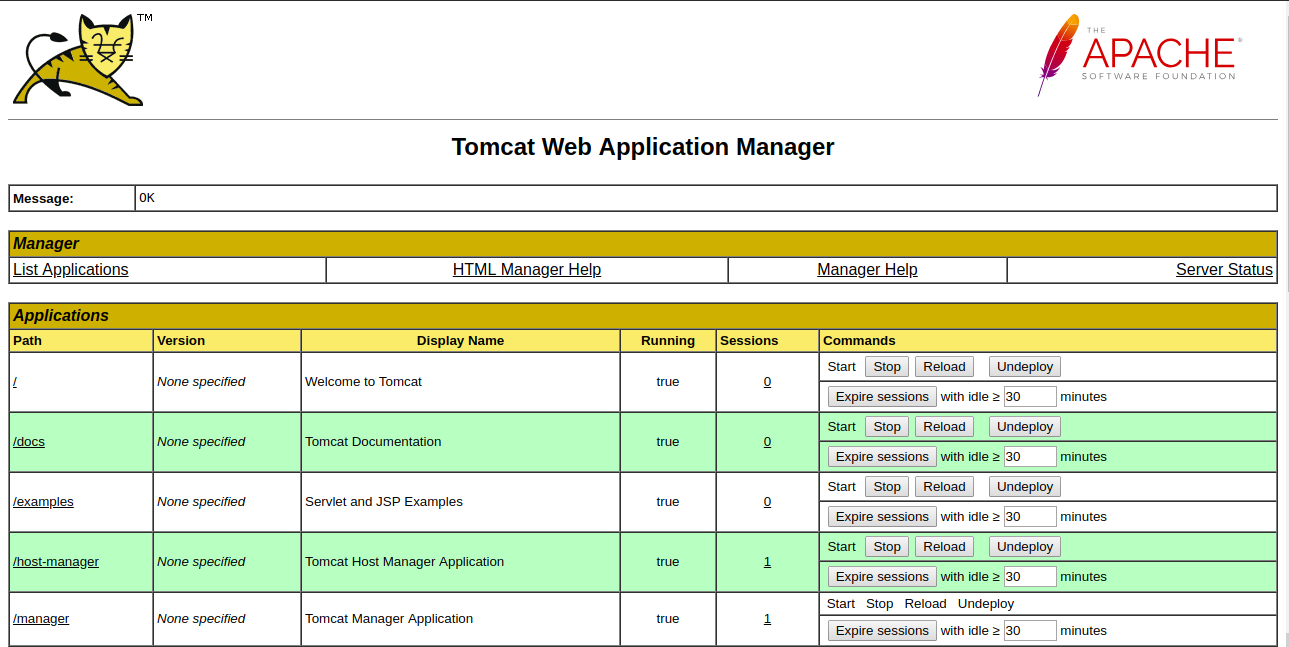

Now, click on the Manager App/Host Manage button. You will be prompted for the admin username and password. Provide your admin username and password and click on the Login button. You should see the Manager App/Host Manager on the following page:

Step 9 – Configure Nginx Proxy for Tomcat

By default, Tomcat is configured to run on port 8080, so you will need to configure Nginx as a reverse proxy to forward the request coming on port 8080 to the Nginx port 80.

First, install the Nginx web server with the following command:

apt-get install nginx -y

Once installed, create a new virtual host configuration file for Tomcat.

nano /etc/nginx/sites-available/tomcat.conf

Add the following lines:

server {
  listen 80;

  server_name    example.com;
  access_log /var/log/nginx/tomcat-access.log;
  error_log /var/log/nginx/tomcat-error.log;

  location / {
        proxy_set_header X-Forwarded-Host $host;
        proxy_set_header X-Forwarded-Server $host;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_pass http://127.0.0.1:8080/;
  }
}

Save and close the file, then enable the Nginx virtual host file and restart the Nginx web server to apply the configuration:

ln -s /etc/nginx/sites-available/tomcat.conf /etc/nginx/sites-enabled/
systemctl restart nginx

Now, you can access your Tomcat web interface using the URL http://example.com.

Conclusion

Congratulations! Your Tomcat installation is now completed. I hope you have now enough knowledge to deploy your Java-based application on the Tomcat server. For more information, visit the Tomcat official documentation at Tomcat Doc. Try out Tomcat today with VPS Hosting from Atlantic.Net!
